LumiFlex LED Neon

LumiFlex-24WXX-67

LumiFlex LED Neon

The LumiFlex LED Neon is a high-performance flexible linear lighting solution designed for industrial, architectural, and residential use. Operating at 24V and available in 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures, it delivers reliable, uniform illumination in a durable format. Its industrial-quality construction is both waterproof and UV resistant, while the flexible, cuttable design allows for easy customization to project requirements. The fixture is dimmable for precise lighting control, comes with mounting brackets for quick installation, and is certified to CE and RoHS standards for safety and performance assurance.

Documentation
Datasheet

All photometric and electrical data for SIRS-E® and our ODM LED Tape are measured in compliance with IES LM–79–24 and ANSI C82.77:2002. Our colorimetric data follow IES TM–30–24, CIE 013.3–1995, CIE 15:2018, and the chromaticity specifications of ANSI C78.377–2024. Lifetime and lumen maintenance data are tested in accordance with ANSI/IES LM–80–21. Where applicable, SDCM (Small Deviation of Color Matching), also referred to as the MacAdam ellipse, is used to define color consistency, referencing Specification of Small Chromaticity Differences by David L. MacAdam.

CE and RoHS Logo

LumiFlex Product Specifications

Input Voltage: 24V DC Reel Length: 32.8 ft / 10 m
Limiting Control Method: CC – Constant Current / CV – Constant Voltage Max Run Length: 32.8 ft / 10 m
Power Consumption: 4.6 W/ft Segment Width: 1.97 in (50 mm)
LED Chip Type: High Quality SMD 5050 3-Diode Luminous Flux Maintenance: 50,000 hrs2
LED Density: 19 LEDs/ft / 60 LEDs/m Dimming: DMX PWM, RFPWM, 0-10V, MLV, DMX 512 Control
Board Type / Color: 3 oz Density Copper, White PCB Environmental: IP 67 – Dry and Damp Locations
Operation Temperature: -13° F to 122° F Resistant Material: UV Resistant
Mounting: Bracket1 Cable Material: Waterproof Heatsink
Beam Angle: 120° Warranty: 2 Year Limited, 1 Year Outdoor
Custom length Availability: Yes Certifications:CE, RoHS


1 – It is recommended two brackets per meter (included).
2 – After 50,000 hrs: 30% Luminous Flux loss, 10% Chromaticity change, as per LM-80-15.

LumiFlex Product Photometrics

Nominal CCT (K) Luminous Flux (lm/m) CRI Luminous Flux (lm/w) Power (W/m) Power Regulation
2700 K 491 90+ 33 15 CV / CC
3000 K 478 90+ 32 15 CV / CC
3500 K 534 90+ 36 15 CV / CC
4000 K 542 90+ 36 15 CV / CC
5000 K 531 90+ 35 15 CV / CC


Delivering proven LED strip lighting with no electrical, chromatic, or color rendering issues. Our unwavering focus on stability, efficiency, and performance sets the benchmark in linear LED and lighting control solutions.

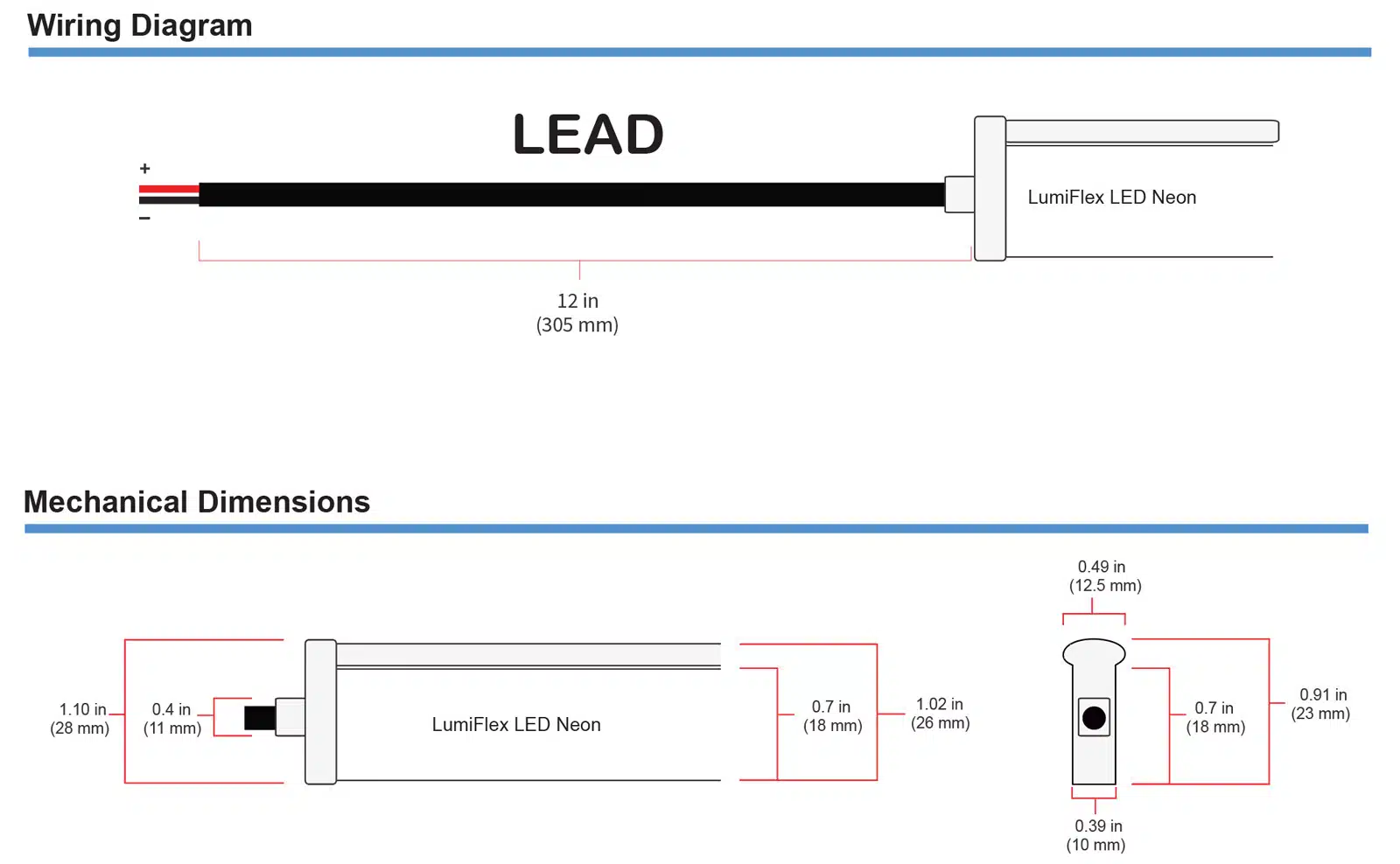

LumiFlex Wiring Diagram Dimensions

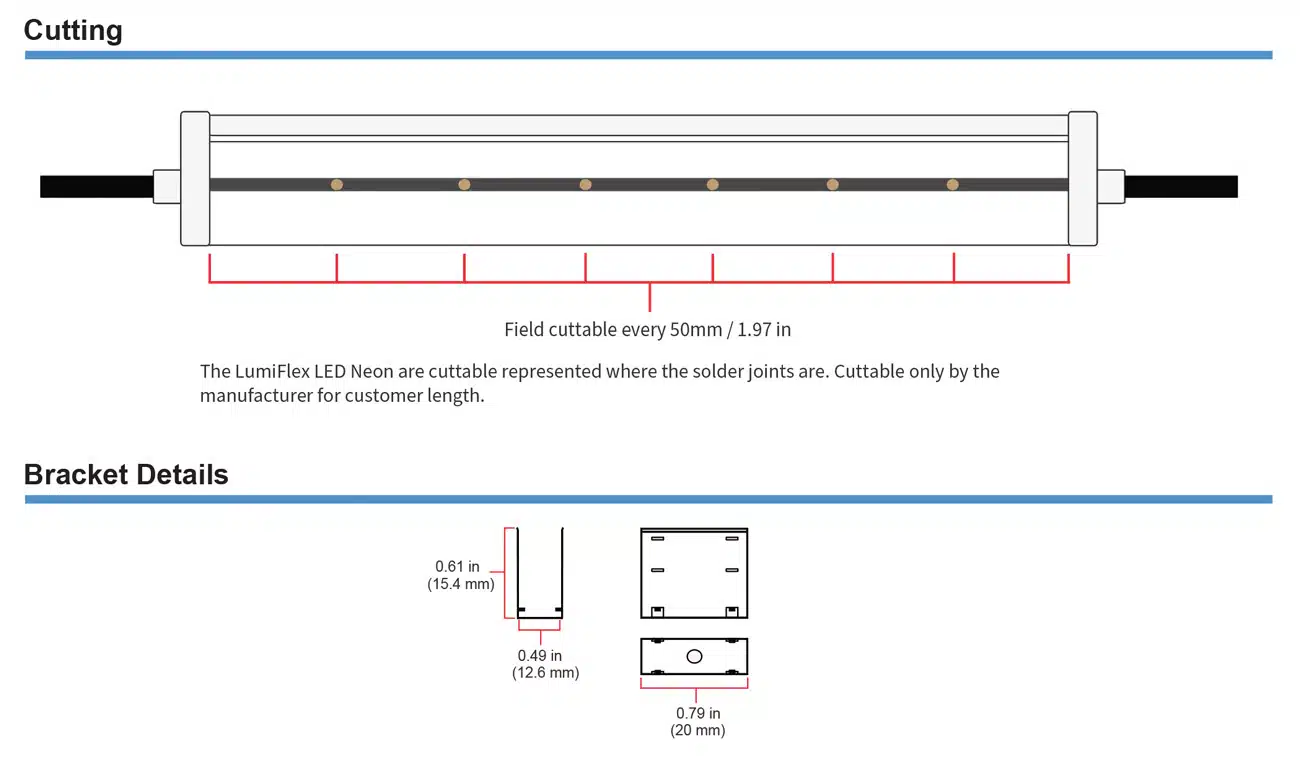

LumiFlex Cutting

LumiFlex Product Country of Origin

Product Engineering & Design USA
Assembled China Preassembled / USA Final Assembly
Quality Control USA
Product Customization USA
Technical Support USA


Documentation Videos
YouTube Channel


CCT

2700K, 3000K, 3500K, 4000K, 5000K
