Product Description

3528 SMD Var White LED Strip RF Kit, 2800-12000k 10m 32.8ft 120/m

Package Includes

• 2 - Variable White LED Strip (3528-LED-WVAR)
• 1 - Variable white Controller (LED-CON-VAR)
• 1 - LED Controller Power Supply, USA/EU (12-350UL-LED-PSUS/EU)

Product Features:

*High Brightness, Single color and changing color
*High luminance efficiency and low power consumption
*Hours Maintenance - Over 100,000 hours of estimated life
*Easy Installation, 3M Self adhesive back side
*Matched Joint connector and direct soldering
*The flexible LED strip can be divided into 10cm (Approx. 4 inches)segment!
*1 year limited warranty

 "10cm Segment"

 Applications:

*Ideal for in advertisement and cabaret, cabinet, furniture, landscape and architectural lighting.  This include Cove, edge and Contours lighting.
*The flexible LED strip with self-adhesive back nearly sticks to every kind of underground.
*Easy installation dedicated for room- and deco-light!
*Signs

 Product Details:

• Standard: 1 Reel / 5 Meters
• Usage: Decoration
• Protection Level: Non-Waterproof
• Power Source: DC
• Input Voltage: 12V
• Emitting Color: Cold to Warm White
• Diffuser: Tempered Glass
• Base Material: Aluminum
• Electric Current: DC
• Certification: CE

Parameters	Symbol	Absolute Maximum Rating	Unit
Foward Current	IF	Max 400	mA
Power Dissipation	PD	4.8	W
Electrostatic Discharge	ESD	1000	V
Operating Temp.	Topr	-25~+60	C
Storage Temp.	Tstg	-40~+80	C

Parameters	Symbol	Condition	Min	Type	Max	Unit
Forward Voltage DC	VF	IF=400mA	---	12	---	V
Dominant Wavelength	λD	IF=400mA	---	----	---	nm
Color Temperature	Tc	IF=200mA	2500	---	2700	K
Color Temperature	Tc	IF=200mA	11000	---	12000	K
Luminous Flux (WW)	ψV	IF=200mA	90		110	lm
Luminous Flux (RW)	ψV	IF=200mA	120		150	lm
50% Power Angle	2 ⁰ 1/2	IF=400mA	--	120	--	deg

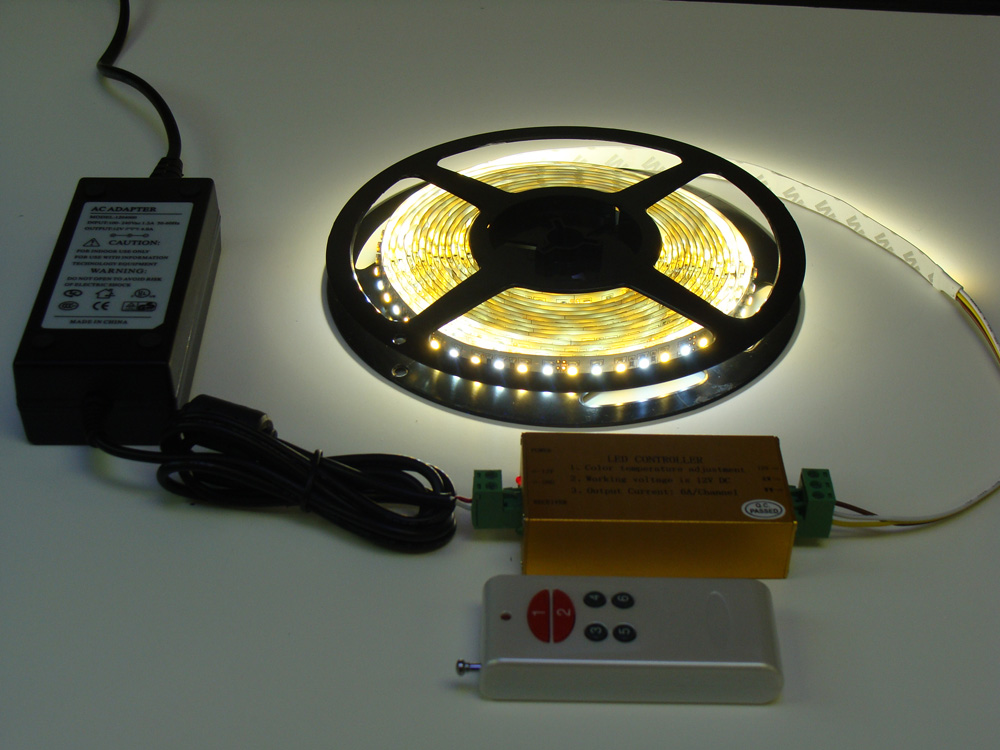

Setup:

Features for Variable white controller:

• The wireless remote control the changes of product.
• Memory the customer's finally using information intelligently
• The color temperature change has 32 ranks.
• The rightness change has 10 ranks.

Product parameter:

Working voltage: DC12V. Working current:6A/channel (altogether two channels) size:115*42*24 (L*W*H) mm.

Product function:

It coordinates with LED strips, to change the color temperature and brightness.

Remote controller guide:

1. To power strip on/off
2. To choose light emitting mode (all pure white on or all warm white on)
3. To increase strip color temperature till pure white.
4. To increase strip color temperature till warm white.
