The new RGB High Power LED 2 is now available. Product description and User Manual will be post soon!

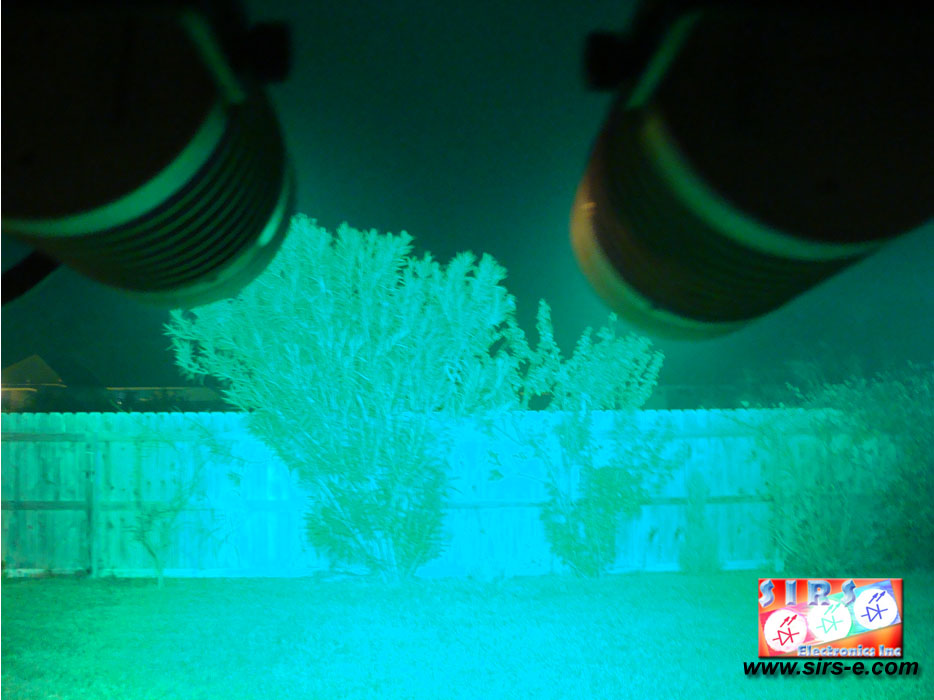

Here are some application photos and temporary Product Overview of the new RGB High Power LED 2.
Temporary Product Overview:
The fixture is very versatile and can be used in many different applications as stage effects, stage direct lighting, wall washing, and strobe (any color), architectural, etc.
Specifications: They are 30 and 45 degree beam angle non focusable soft edge interchangeable lenses available, DMX controllers is custom made under our specs, main advantage is depending on the ambience average temperature we can preset each color current from 500-800 mA with 50mA steps. IP65
Body is machined in high performance aluminum 3” diameter, natural convection, finishing available are sand blasting (picture) and black anodized.
Maximum configuration is 4 RGB-HPL02 array per controller at 500 mA per color per fixture, you can combine 4, 2 units to the same point or individually.
Photometric charts are not completed yet. We are still working on them but as preliminary information we include the following details:
1 fixture HPL-02RGB 185 LUX @ 4 meters (about 12’) white 9000k 30degree lenses peak ilmunance at 650mA color preset, body temperature 60c
They are very powerful with a smooth color mixing and the luminary looks very clean
Application: We use 22 of them to light an stage on 8x5 meter and 8 musicians, we removed 60 par 64 with ray light 600w.
More: New dealers are always welcome, if you send your contact information we will send you more technical information as soon as it becomes available.
MADE IN USA.
We also have packages available to make your search easier.
If you have questions, please send us an email to info@sirs-e.com or give us a call to (956)522-2006.
|
