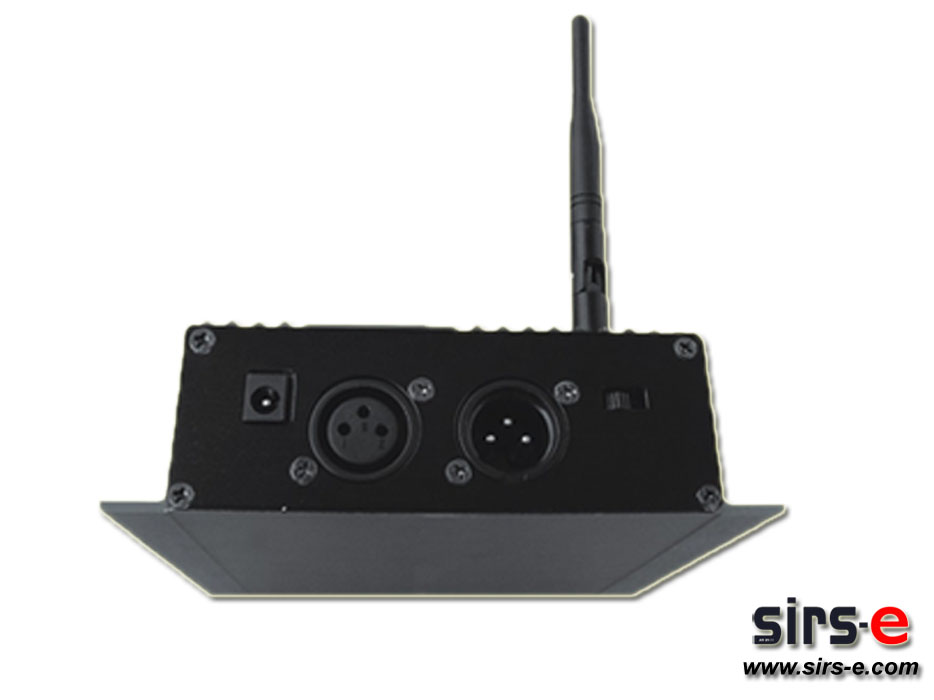

Wireless DMX PRO 2.4 Ghz (Europe/USA Version)
Universal Power supply 100-240 Volts AC
DMXW 2.4 Datasheet
This listing includes 1 wireless DMX PRO 2.4Ghz unit.
Note: The price indicated is for 1 unit but you can also buy 2 or more units.
Click Here
INTRODUCTION
Thank you for choosing DMXW2.4 product. If you follow the instruction given in this manual, we are sure that you will enjoy this device for a long period of time.
Description
A. Features
Transmitter or Receiver for wireless data transmission:
- DMXW2.4 is interference-free from other wireless devices in the 2.45 GHz band such as W-LAN
- DMXW2.4 uses adaptive FHSS (Frequency Hopping Spread Spectrum) and TDMA (Time Division Multiple Access)
- One DMX2.4 supports a single DMX-512 universe with 512 DMX-channels
- Larger systems can easily be adapted to support up to 8,200 DMX channels (16 DMX-512 universes)
- Up to 8,192 receivers can be used in a DMXW2.4 system
- Frequency channel: 250
TECHNICAL SPECIFICATIONS:
Power supply: 100-240 V AC, 50/60 Hz ~ 9 V DC, MIN500M A power unit included in the delivery
Power consumption: 3 W
Number of control-channels: 512 (1 DMX-512 universe)
Max. number of receivers: 8,190
DMX 512-input: 3-pin XLR-plug
Frequency: 2.450 GHz
Coverage: 400 m (with line-of-sight)
Dimensions (L x W x H): 135 x 120 x 42 mm
Weight: 1 kg
MANUAL
User Manual
Need Large quantities? Give us a call.
You can have an unlimited amount of receivers.
Note: The price indicated is for 1 unit but you can also buy 2 or more units. Click Here
|
