The new Wireless DMX PRO II (Europe/USA Version) have an improved Range and stronger DMX Signal!

Universal Power supply 100-240 Volts AC

This listing includes 2 wireless DMX PRO II units.

Note: The price indicated is for 2 units but you can also buy 1 or more units individually. Click Here

Product Overview

The DMXW wireless DMX PRO II job is to receive DMX signal from DMX controller and transmit signal to the other DMXW wireless DMX PRO II to control the fixture with DMX signal.  This new version of wireless DMX PRO have a improved High Power Antenna which provides better Reception and Transmission.

Specifications

Model Name:  DMXW

Model Description:Wireless DMX PRO II

Input Power:  9V/500mA

Wireless Space:100M (Open Space, Line of Sight)

Working Frequency:  915M/433M

Spit Power:  15DB

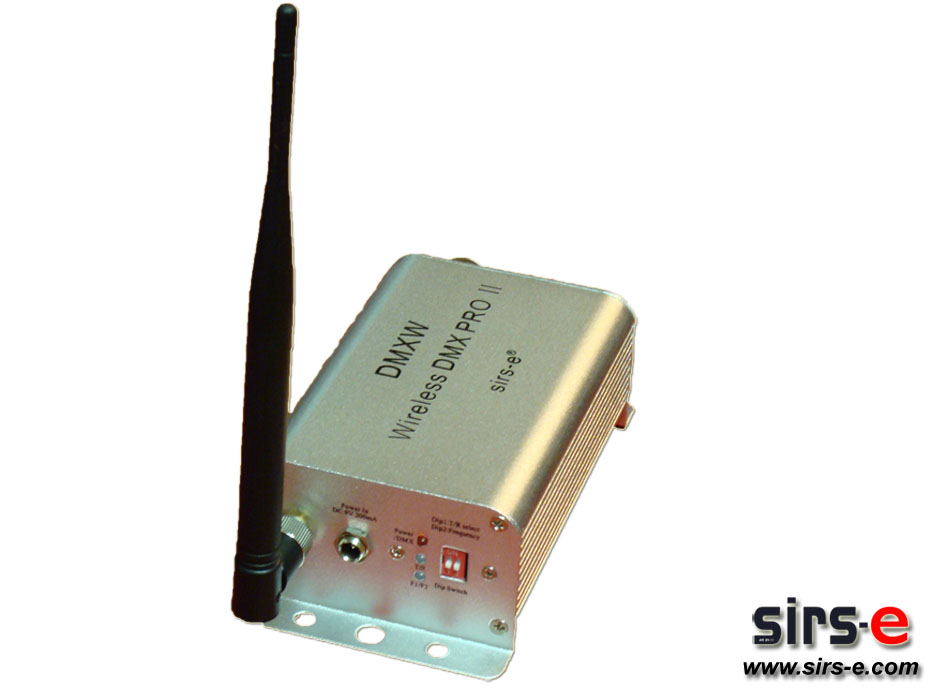

3 )  Sketch

1.  Wireless SMA connector

2.  DC input outlet

3.  DMX signal indicator light

4.  DMXW wireless DMX PRO II signal indicator lights: Signal Reception is Green and Signal Transmission is Red.

5.  Working frequency indicator light:  915M (Red), 433M (Green).

6.  The first switch code sets up the DMXW wireless DMX PRO II to be signal receiver (Slave) or signal Transmitter (Master).  The second switch code is to choose the working frequency.
